Flush with the floor shower bases
The flush with the floor shower base elements for one-point drainage consist of a hard foam support element with top-side sealing, integrated and sealed floor drain support frame, 135 x 135 mm.
For all shower bases there are matching substrate elements: Universal substrate elements are offered for the standard sizes; for the customised shower bases the substrate elements including the drain position are also made to measure.

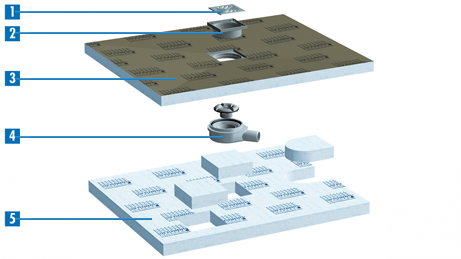

1. Grate variants
2. Grate fitting frame
3. Shower base
element
4.
Drain connection
(vertical or horizontal)
5. Substrate element
(universal substrate
element or made to
measure)
Universal substrate elements for standard sizes
The universal substrate elements, square or rectangular, in various sizes fit several standard shower bases respectively, thus reducing warehousing at the dealer's. The cutouts for the central and decentralised drain have already been made.
Depending on the drain position, the opening that is not required is closed using an enclosed filler. The substrate elements can be easily cut to size if required e.g. to shorten or re-shape them (pentagonal, quadrant).
TUB-UQ - universal substrate element

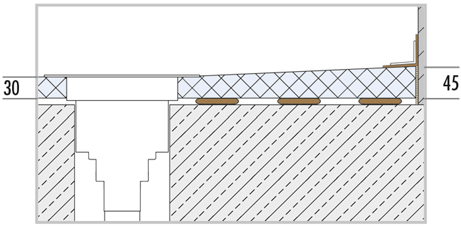

The installation heights
Please note: Dimensions in mm. Measures without adhesive coating and tiles.
TUB-BA-S


TUB-BA-S Floor drain support vertical
with substrate element
TUB-BA-W

TUB-BA-W Floor drain support horizontal
with substrate element
